main features
Spesifikasi
main features
- Upgraded tensioning structure—more robust and reliable. The walking tensioning system uses an oversized tension spring + self-lubricating bearing structure, improving operational stability and preventing spring failure.
- Unique belt transmission structure—smoother transmission. The unique non-winding structure ensures each belt drives only one load, reducing belt stress, extending service life, ensuring more stable power transmission, and lowering maintenance costs.
- Efficient cleaning structure—improved cleaning performance. Unique curved stainless steel fan blades provide greater air volume and a wider adjustment range.
- Upgraded reel structure—reduced tangling and smoother operation. All elastic teeth are used, and protective covers can be installed, effectively enhancing anti-tangling capability and improving the harvesting effect for lodged crops.
- One rod control hydraulic steering, convenient operation, can be adapted to multiple working condition, reduce labor working. A/C with warm and cold wind Cabin is optional.
Spesifikasi

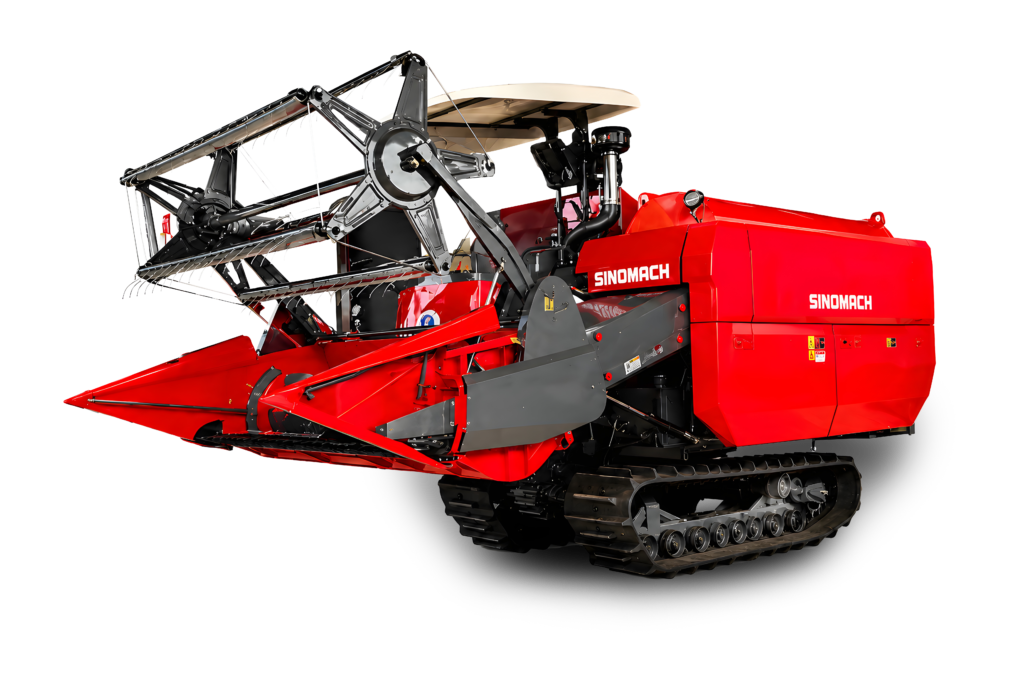

Product Model : 4LZ-6.OZ
Structure Type : Full-Feed Track Self-Propelled Type
Engine Rated Power (HP) : 102
Overall Dimension (L x W x H) (mm) : 5200 x 2620 x 2870
Complete Machine Weight (kg) : 3650
Cutting Width (mm) : 2200
Feeding Capacity (kg/s): 6.0
Min. Ground Clearance (mm) : 500
Theoretical Running Speed (km/h) : 0-9.04
Working Efficiency (hm2/h) : 0.4-0.65
Oil Consumption (kg/hm2) : ≥32
Header Auger Type : Retractable Horizon Transfer
Reel : Eccentric Reel Teeth
Concave Type : Grid
Gauge : 1250
Track Specification : 90mm x 56 x 550mm
Gearbox Type: 58 HST
Grain Unloading Type : Manual Grain Unloading
