Main features
Main features

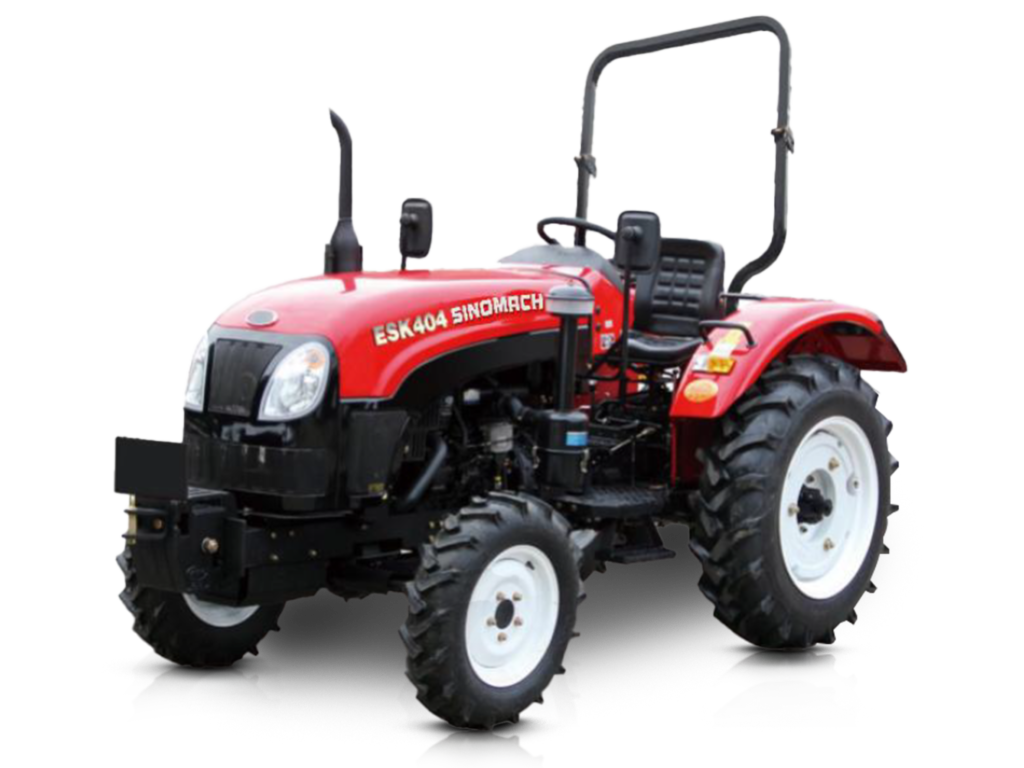

- The series of tractors have beautiful appearance, widely used in farmland, transportation and other operations.
- Naturally aspirated diesel engine, strong power, low fuel consumption.
- 8F+2R gears, side – positioned gear shift lever, easy to operate.
- Hydrostatic steering, easy and flexible operation.
- Stepless adjustment of rear wheel track, suitable for various agronomic needs.
- Optional air breake device and force down lifter.
Spesifikasi
Engine type : 4 cylinder, naturally aspirated diesel engine
Rated power KW (hp) : 29.4(40)
Engine speed : 2400
Clutch : Single action
Gears : 8F+2R
Speed range (km/h) : 2.17 – 33.11
Brake type : Dry, horseshoe
Rear PTO : 540/1000
Lifting force (link joint (KN) : ≥9.75
Hydraulic output (set) : 1 or 2
Overall dimensions (L*W*H) (mm) : 3600*1485*1940
Wheel base (mm) : 1830
Ground clearance : 300
Min. turning radius (m) : 4.0±0.3
Wheel track (F/R) (mm) : 1200/110 – 1300
Tyre (F/R) : 6.50 – 16/ 11.2 – 24(Option7.50 – 16/11.2 – 28)
Min. operating mass (without ROPS) (kg) : 1570
